Mini Case
An often neglected part of building a computer is the case. Its the part that defines the look of your custom build PC, holds all the components in their place and importantly is responsible for a large chunk of getting rid of the stuff that kills computer parts - heat! Here at UK Gaming computers, we only use the best in case class cases out there, which, despite their advertising, is unlike a lot of our competitors who use cheap substandard cases as its a very common corner cutting trait. Who wants their £1000 PC in a £20 case? When choosing a case, we recommend you pick the best one that you can afford, as it is one of the parts that you will probably reuse upgrade after upgrade and ultimately will define the overall look and noise levels of your system.
It is also worth noting that because we are not tied to a specific brand/supplier we can provide you with exactly the case you wish. If you have seen something and want to incorporate it into your build or want to know what we think of it then please do feel free to get in contact with us.
Please be aware, any specific features of a case are other component dependant and may not be available. Currently this is commonly with the bad evolution and implementation of USB-C ports on some cases and the fact that compatible headers are usually only found on motherboards often costing more than the case itself making it a economically non viable option. Other common instances are where there are not enough USB 2.0/3.0 headers on value orientated motherboards to support a higher end case or cooler. If you are unsure of anything regarding the availability of case ports and headers then please contact us.
NZXT H210 White
The smallest H-Series case, the H210/H210i come in at a slim 27 liters but give up nothing. The full tempered glass showcases your mini-ITX build with glorious clarity and the front mounting bracket allows installation of radiators up to 240mm. Supporting both SFX and ATX power supplies, you don’t need to make any compromises with this build.
| Dimensions | W: 210mm H: 349mm D: 372mm (with feet) |
|---|---|
| Front Cooling | 2 x 120mm (optional) |
| Rear Cooling | 1 x 120mm (1 x 120mm Aer F120 Included) |
| Top Cooling | 1 x 120mm (1 x 120mm Aer F120 Included) |
| Front Panel | 1 x Headphone, 1 x Mic In, 1 x USB 3.1, 1 x USB Type-C |
| Case Weight | 6.0 kg |
| Case Material | SGCC Steel and Tempered Glass |
| Case Colour | White |
| Features | Premium, all-steel construction with the sleek H-series design, Tempered glass panel, Dust Filters |
NZXT H210i White
The smallest H-Series case, the H210/H210i come in at a slim 27 liters but give up nothing. The full tempered glass showcases your mini-ITX build with glorious clarity and the front mounting bracket allows installation of radiators up to 240mm. Supporting both SFX and ATX power supplies, you don’t need to make any compromises with this build.
| Dimensions | W: 210mm H: 349mm D: 372mm (with feet) |
|---|---|
| Front Cooling | 2 x 120mm (optional) |
| Rear Cooling | 1 x 120mm (1 x 120mm Aer F120 Included) |
| Top Cooling | 1 x 120mm (1 x 120mm Aer F120 Included) |
| Front Panel | 1 x Headphone, 1 x Mic In, 1 x USB 3.1, 1 x USB Type-C |
| Case Weight | 6.0 kg |
| Case Material | SGCC Steel and Tempered Glass |
| Case Colour | White |
| Features | Premium, all-steel construction with the sleek H-series design, Tempered glass panel, Dust Filters |
Cougar QBX
The most advanced compact case of the market is here. COUGAR QBX comes here to conquer the world with three big weapons within its compact body: Its dimensions, its expansion potential and its unrivalled cooling.
| Dimensions | 178 x 291 x 384 (mm) |
|---|---|
| Front Cooling | (SIide Cooling) - 1 x 120mm (optional) (Bottom Cooling) - 2 x 120mm (optional) |
| Rear Cooling | 1 x 90mm (included) |
| Top Cooling | 2 x 120mm (Optional) |
| Front Panel | 2 x USB 3.0, Audio in/out |
| Case Weight | 4.6 kg |
| Case Material | Steel and ABS plastic |
| Case Colour | Black |
| Features | Just 19L volume, Brushed aluminum-look panels, up to 5 storage devices |
Phanteks Eclipse P200A DRGB
The Eclipse P200A is a high airflow mini-ITX chassis featuring the Ultra-fine Performance Mesh to bring the highest cooling performance.
| Dimensions | 205 mm x 365 mm x 400 mm |
|---|---|
| Front Cooling | 2 x 120mm (Phanteks RGB 120mm fans included) |
| Rear Cooling | 1 x 120mm (optional) |
| Front Panel | USB-C GEN 2, 2x USB 3.0, Microphone/Headphone |
| Case Weight | 5.5kg |
| Case Material | Steel & Tempered Glass |
| Case Colour | Black |
| Features | Full side Panel Window, ARGB fans included, USB Type-C |
Fractal Design Node 304
The Node 304 is not much bigger than a shoe box and is unique to out Mini PC range! It is the latest compact computer chassis from Fractal Design featuring a unique modular interior for outstanding configurability. The Node 304 accommodates up to six hard drives. Unused mounting brackets can removed to allow for long graphic cards, additional airflow or more space for organizing cables. Additionally, it is equipped with three hydraulic bearing fans, easy-to-clean air filters in all intakes and two front USB 3.0 ports. Featuring hybrid functionality, the Node 304 case is ideally used as a cool-running file server, a stylish and quiet home theatre PC or a powerful gaming system highlighting minimalistic and stunning Scandinavian design and maximum functionality.
| Dimensions | 250 x 210 x 374 mm |
|---|---|
| Front Cooling | 2 x 92mm Fans (included) |
| Rear Cooling | 1 x 120mm Fan (included) |
| Front Panel | USB 3.0 x 2, MIC x 1, SPK x 1 |
| Case Weight | 4.9 kg |
| Case Material | Steel & Aluminum |
| Case Colour | Black |
| Features | Filtered air intakes, Three Silent Series R2 hydraulic bearing fans included, & Fan controller for all fans included |
Lian Li O11 Air Mini
Small tower with big airflow, the O11 AIR MINI provides modular design for ATX, M-ATX or ITX motherboards. Being all about the air, O11 AIR MINI has a spacious interior to accommodate multiple confirgurations of fan and radiator setups to maximize the airflow.
| Dimensions | (D) 400 X (W) 288 X (H) 384 mm |
|---|---|
| Front Cooling | 2 x 120/140mm (optional) |
| Rear Cooling | 1 x 120mm fan (included) |
| Top Cooling | 2 x 120/140mm (optional) |
| Front Panel | 2 X USB 3.0,1 X USB 3.1 Type-c, 1 X HD Audio |
| Case Weight | 6 kg |
| Case Material | 4mm Aluminium Panel, 0.8mm Mesh Panel, 4.0 mm Tempered Glass |
| Case Colour | Black |
| Features | Efficient air-flow design, all round dust filtration, |
Lian Li O11 Dynamic Mini Snow White
O11D MINI adding to the O11 Dynamic series, the classic and mordern looking. A case that would accommodate the maximum number of water-cooling configurations without being oversized.
| Dimensions | (D)420mm X (W)269.5mm X (H)380mm |
|---|---|
| Front Cooling | 3x 120mm or 2x 140mm (Bottom, Optional) |
| Rear Cooling | 1x 120mm (Optional) |
| Top Cooling | 3x 120mm or 2x 140mm (Optional) |
| Front Panel | 2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio |
| Case Weight | 6 kg |
| Case Material | Aluminium, Tempered glass, Steel |
| Case Colour | White |
| Features | Aluminium Construction, Modular Design, Complete Dust Protection |

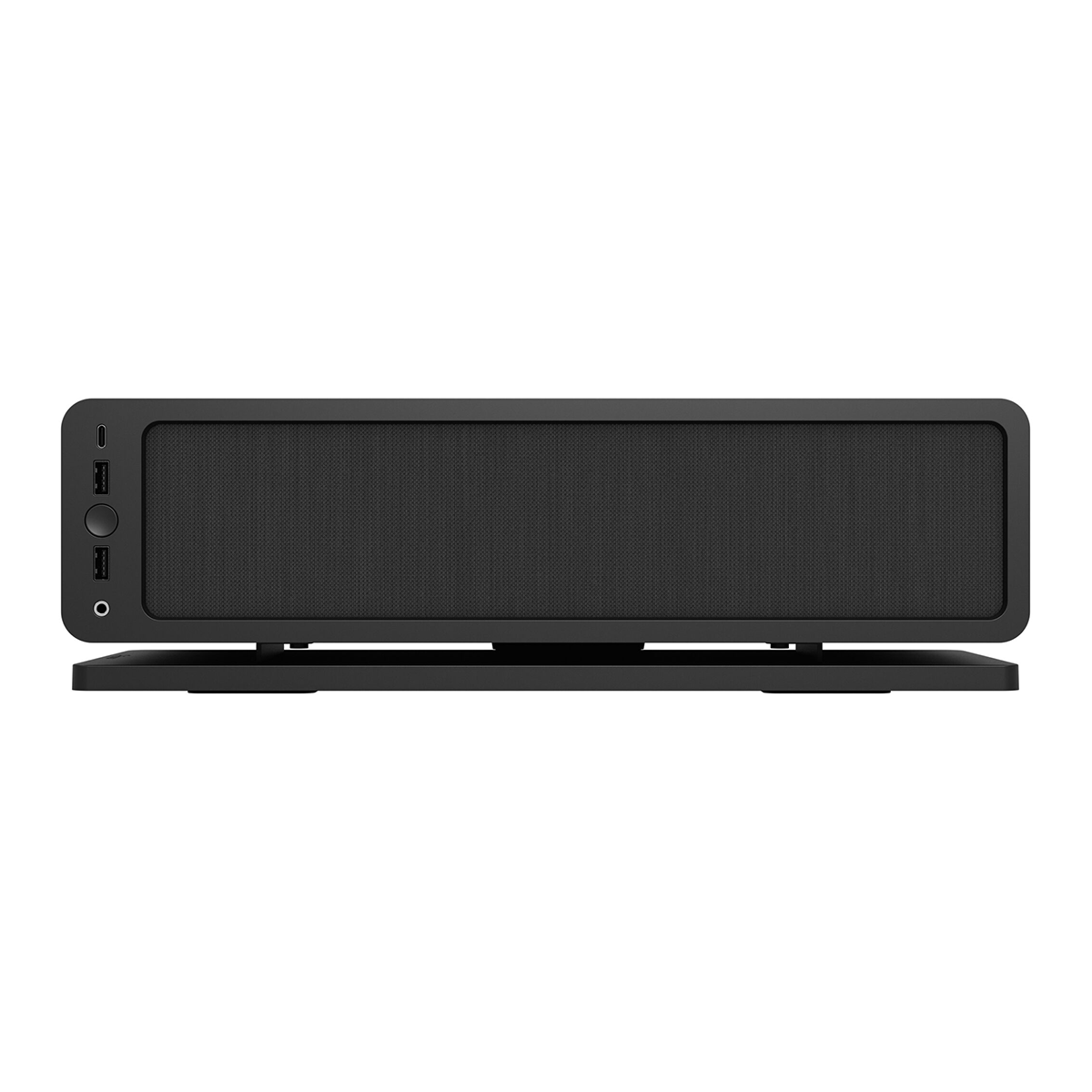

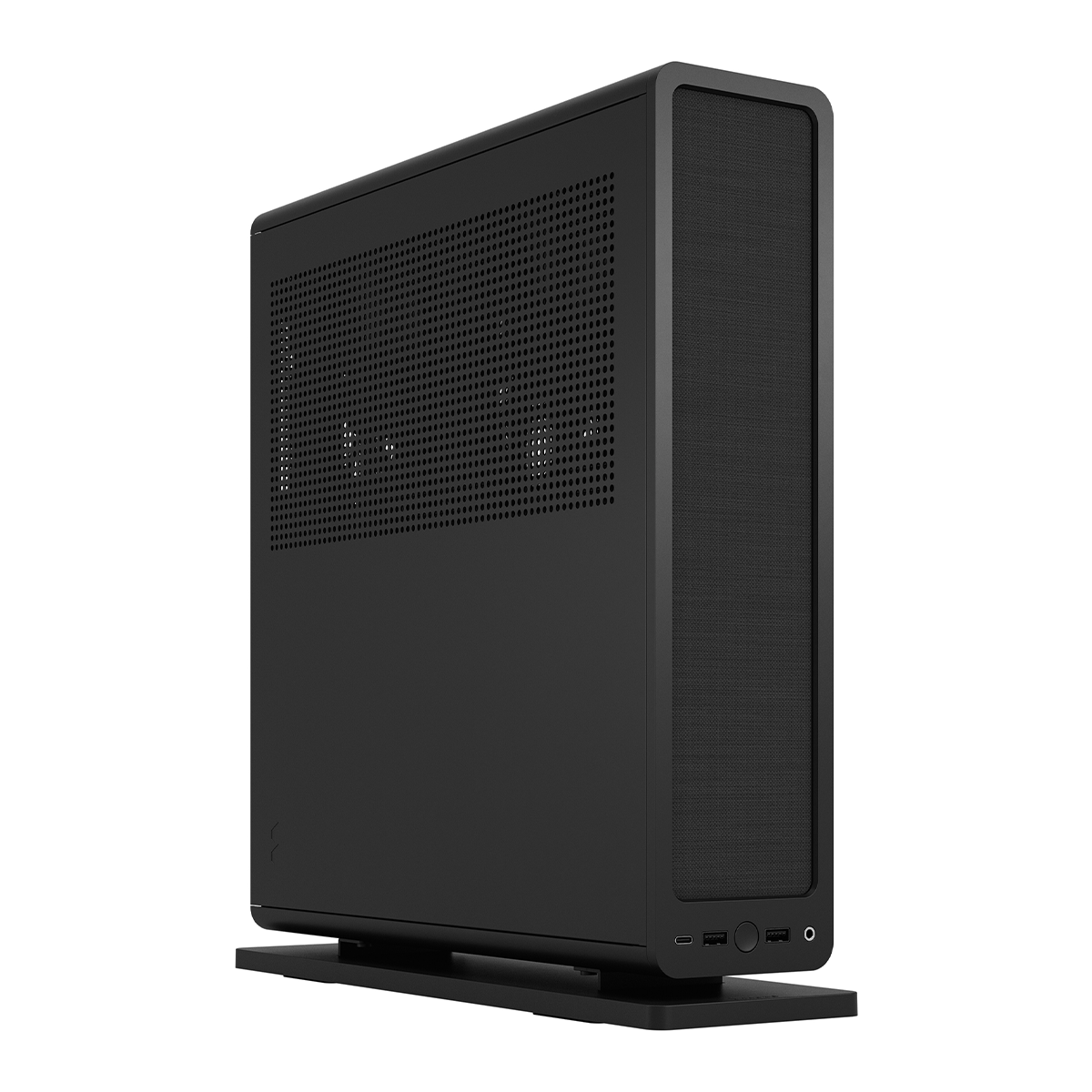

Fractal Ridge Black
This is the modern replacement for the legendary node 202 that we loved. At only 12.6 Litres, its the smallest practical SFX case on the market that is widely compatible without sacrificing functionality and cooling. Mount the Ridge horizontal or vertical thanks to the versatile base and all around ventilation.
| Dimensions | Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm |
|---|---|
| Front Cooling | Bottom/Side Cooling - 2 x 120mm (2 x 140mm Included) |
| Rear Cooling | NA |
| Top Cooling | Na |
| Front Panel | 2 x USB 3.0, 1 x USB 3.1 Type-C, 1 x HD Audio |
| Case Weight | 4.3 kg |
| Case Material | Aluminium, Steel and Fabric |
| Case Colour | Black |
| Features | 12.6L Volume, Horizontal or Vertical mount, All-around ventilation |

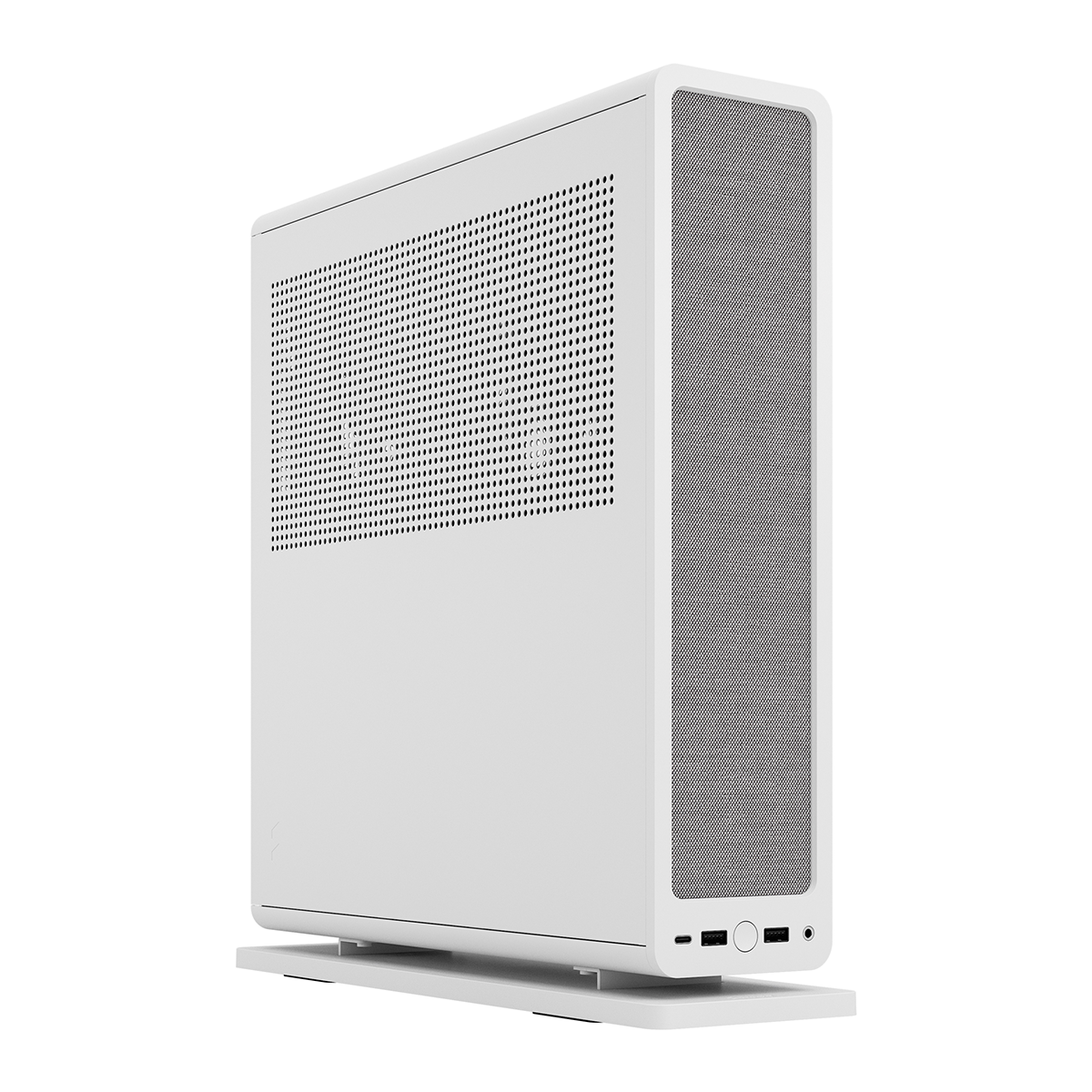

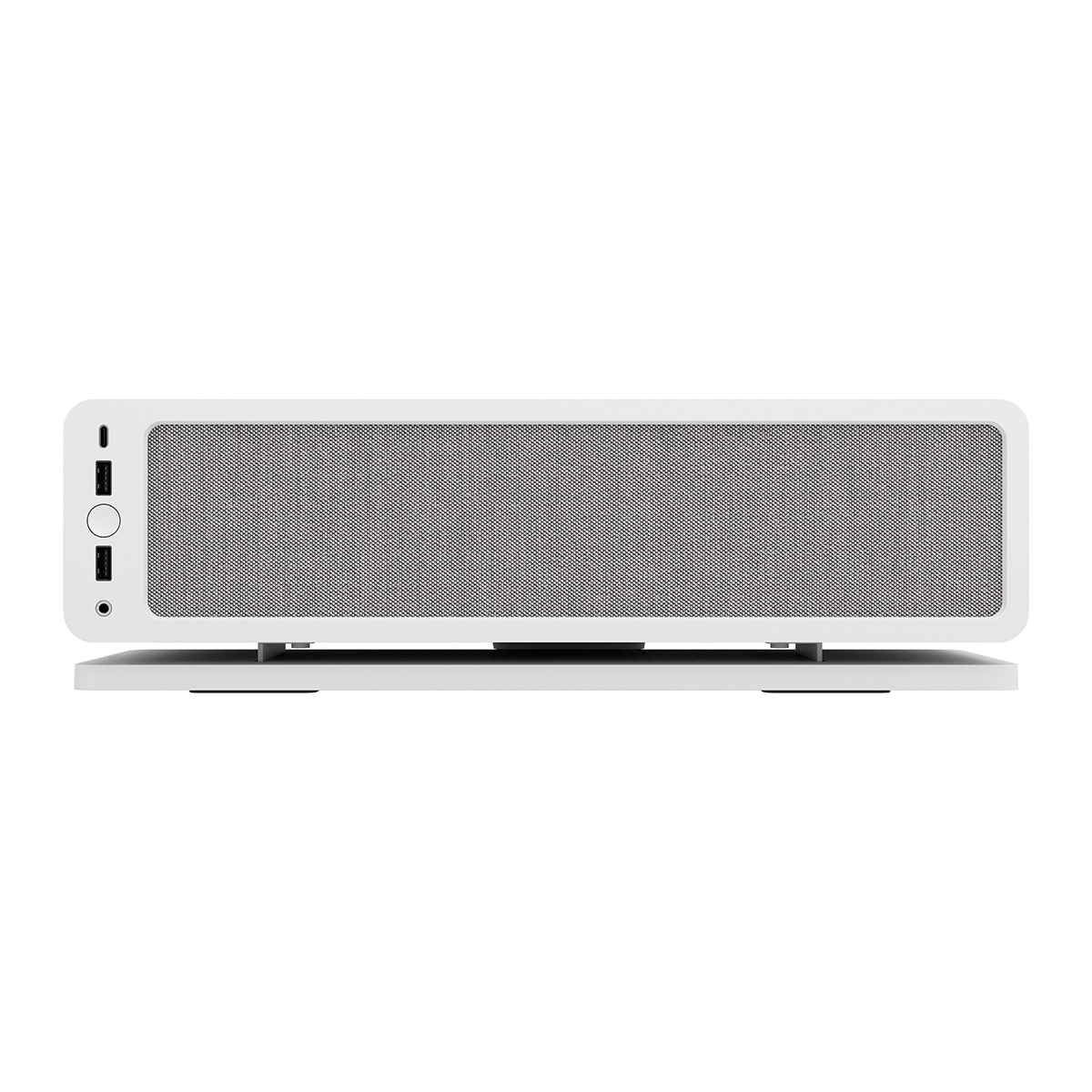

Fractal Ridge White
This is the modern replacement for the legendary node 202 that we loved. At only 12.6 Litres, its the smallest practical SFX case on the market that is widely compatible without sacrificing functionality and cooling. Mount the Ridge horizontal or vertical thanks to the versatile base and all around ventilation.
| Dimensions | Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm |
|---|---|
| Front Cooling | Bottom/Side Cooling - 2 x 120mm (2 x 140mm Included) |
| Rear Cooling | NA |
| Top Cooling | Na |
| Front Panel | 2 x USB 3.0, 1 x USB 3.1 Type-C, 1 x HD Audio |
| Case Weight | 4.3 kg |
| Case Material | Aluminium, Steel and Fabric |
| Case Colour | White |
| Features | 12.6L Volume, Horizontal or Vertical mount, All-around ventilation |
