Socket & Chipset - Intel LGA1851 & Intel Z890 Overclock Support - Yes CPU Support - Intel 15th Generation Arrow Lake RAM Support - Up to 256GB DDR5 (Dual-Channel) Internal USB Headers - 1 x Type-C, 2 x USB 3.0, 2 x USB 2.0

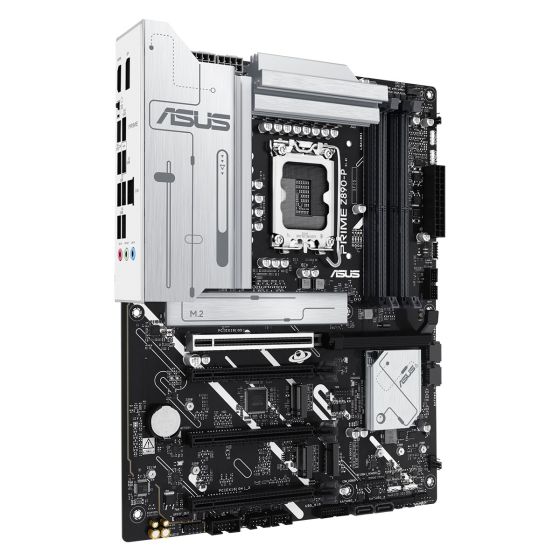

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
More Information
Technical Specifications
Sale
No
Socket Type
Intel LGA1851
CPU Support
Intel 15th Generation Arrow Lake
Max Supported RAM
256GB
RAM Technology
DDR5 (Dual-channel)
Multi GPU Support
None
Chipset
Intel Z890
Expansion Slots
1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16, 1 x PCIe 4.0 x1
Rear Ports
1 x USB Type-C (20Gbps), 3 x USB 3.2, 4 x USB 2.0, DisplayPort, HDMI, 2.5Gb Ethernet Port, 3 x Audio Jacks
Internal I/O connectors
6 x Fan Headers, 4 x M.2 Slots, 4 x SATA 6Gb/s Ports, 1 x USB Type-C Header, 2 x USB 3.0 Headers, 2 x USB 2.0 Headers, 3 x ARGB Headers, 1 x RGB Header
Integrated Features
ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, ASUS Aura Sync
