Socket & Chipset - Intel LGA1851 & Intel Z890 Overclock Support - Yes CPU Support - Intel 15th Generation Arrow Lake RAM Support - Up to 256GB DDR5 (Dual-Channel) Internal USB Headers - 2 x Type-C, 2 x USB 3.0, 2 x USB 2.0

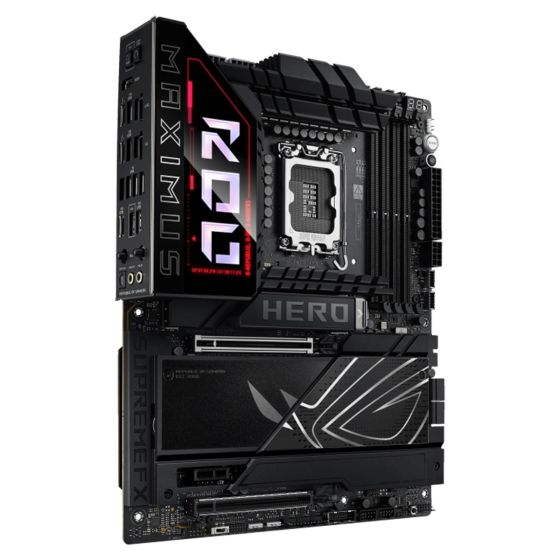

The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
More Information
Technical Specifications
Sale
No
Socket Type
Intel LGA1851
CPU Support
Intel 15th Generation Arrow Lake
Max Supported RAM
256GB
RAM Technology
DDR5 (Dual-channel)
Multi GPU Support
None
Chipset
Intel Z890
Expansion Slots
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1
Rear Ports
2 x Thunderbolt 4 Type-C, 1 x USB Type-C, 8 x USB 3.2, 1 x HDMI, 1 x Wi-Fi 7 Module, 1 x 5Gb Ethernet Port, 1 x 2.5Gb Ethernet Port, 2 x Audio Jacks, 1 x Optical S/PDIF
Internal I/O connectors
6 x Fan Headers, 6 x M.2 Slots, 4 x SATA 6Gb/s Ports, 1 x SlimSAS Connector, 2 x USB Type-C Header, 2 x USB 3.0 Headers, 2 x USB 2.0 Headers, 3 x ARGB Headers
Integrated Features
Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, ASUS Aura Sync, ROG M.2 PowerBoost, Quick Charge 4+ Support
